The Danfoss OD Oil Burner Nozzles are the foundation of the Danfoss nozzle range and are designed to deliver efficient fuel atomization for high-pressure oil burner systems.

Suitable for both light oil and heavy oil applications, the OD series is available in capacities ranging from 0.30 to 35.0 USgal/h, making it suitable for small commercial burners as well as large industrial combustion systems.

The nozzles are available with four spray angles and three spray patterns (Hollow, Solid, and Semi-Solid), allowing burner manufacturers and service engineers to select the optimum combustion characteristics for each application.

Each nozzle undergoes 100% testing for capacity and spray performance in accordance with EN standards, ensuring consistent operation and reliable combustion performance.

Key Features

• High-pressure oil burner nozzle

• Suitable for light and heavy fuel oil

• Available from 0.30 to 35.0 USgal/h

• Three spray patterns available

• Hollow (H), Solid (S), and Semi-Solid (B)

• Multiple spray angle options

• 100% factory tested for performance

• Precision fuel atomization

• Reliable flame stability and combustion efficiency

• Compatible with domestic, commercial, and industrial burners

Applications

• Industrial oil burners

• Commercial heating systems

• Oil-fired boilers

• Industrial furnaces

• Process heating systems

• Thermal oil heaters

• Hot air generators

• Commercial combustion equipment

Why Choose This Nozzle

• Provides precise fuel atomization and distribution

• Available in multiple spray patterns and capacities

• Suitable for both light and heavy oil applications

• 100% tested for quality and performance

• Reliable Danfoss combustion technology

• Improves burner efficiency and flame stability

Technical Description

The Danfoss OD nozzle consists of a precision-machined nozzle housing, nozzle cone, orifice disc, and filter assembly. Fuel is forced through the orifice disc under pressure, creating a finely atomized spray pattern optimized for efficient combustion.

The nozzle is available in Hollow Cone (H), Solid Cone (S), and Semi-Solid Cone (B) configurations, allowing adaptation to different burner head designs and combustion chamber requirements.

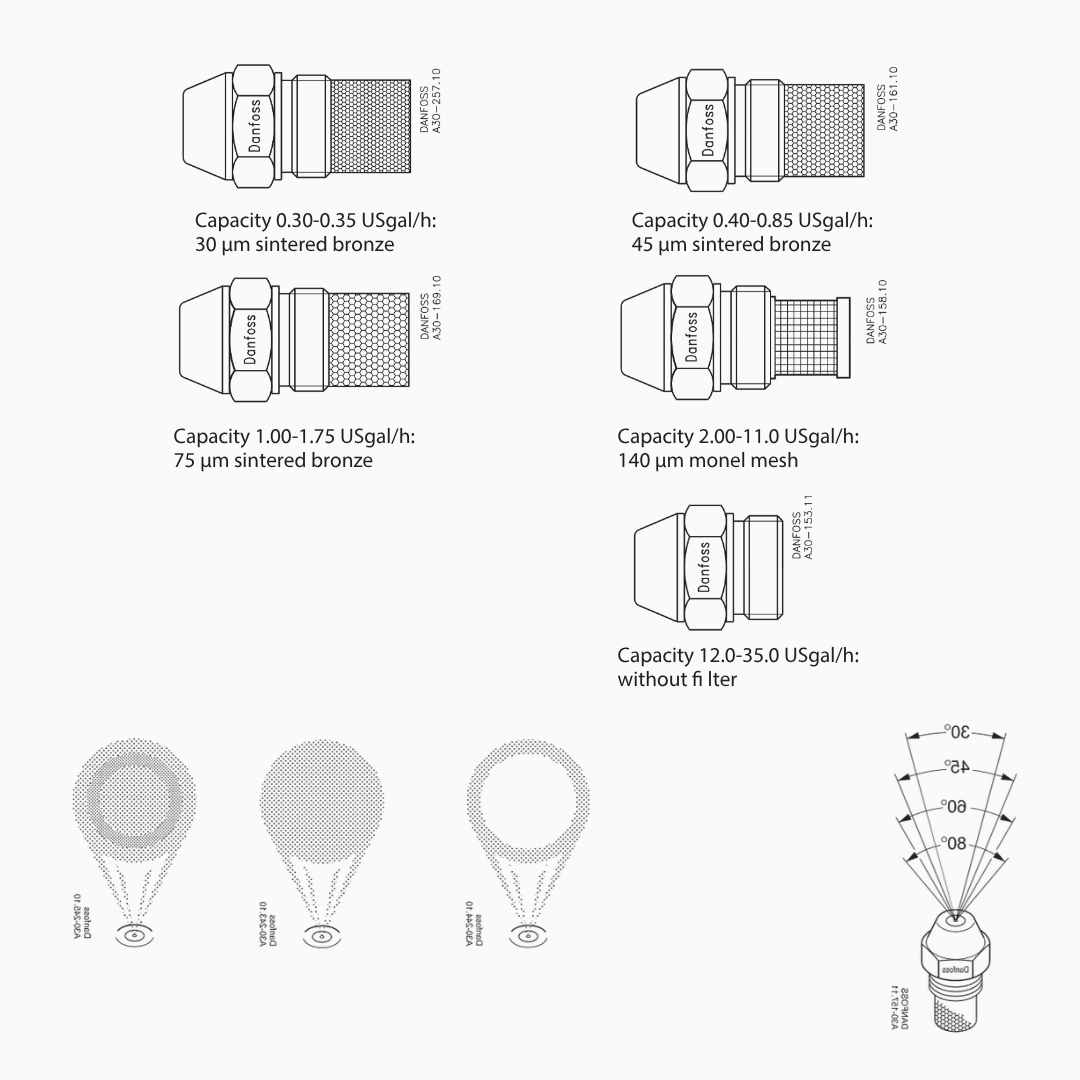

Various filter types are used depending on nozzle capacity, including sintered bronze and Monel mesh filters, ensuring reliable operation and protection from contaminants.
