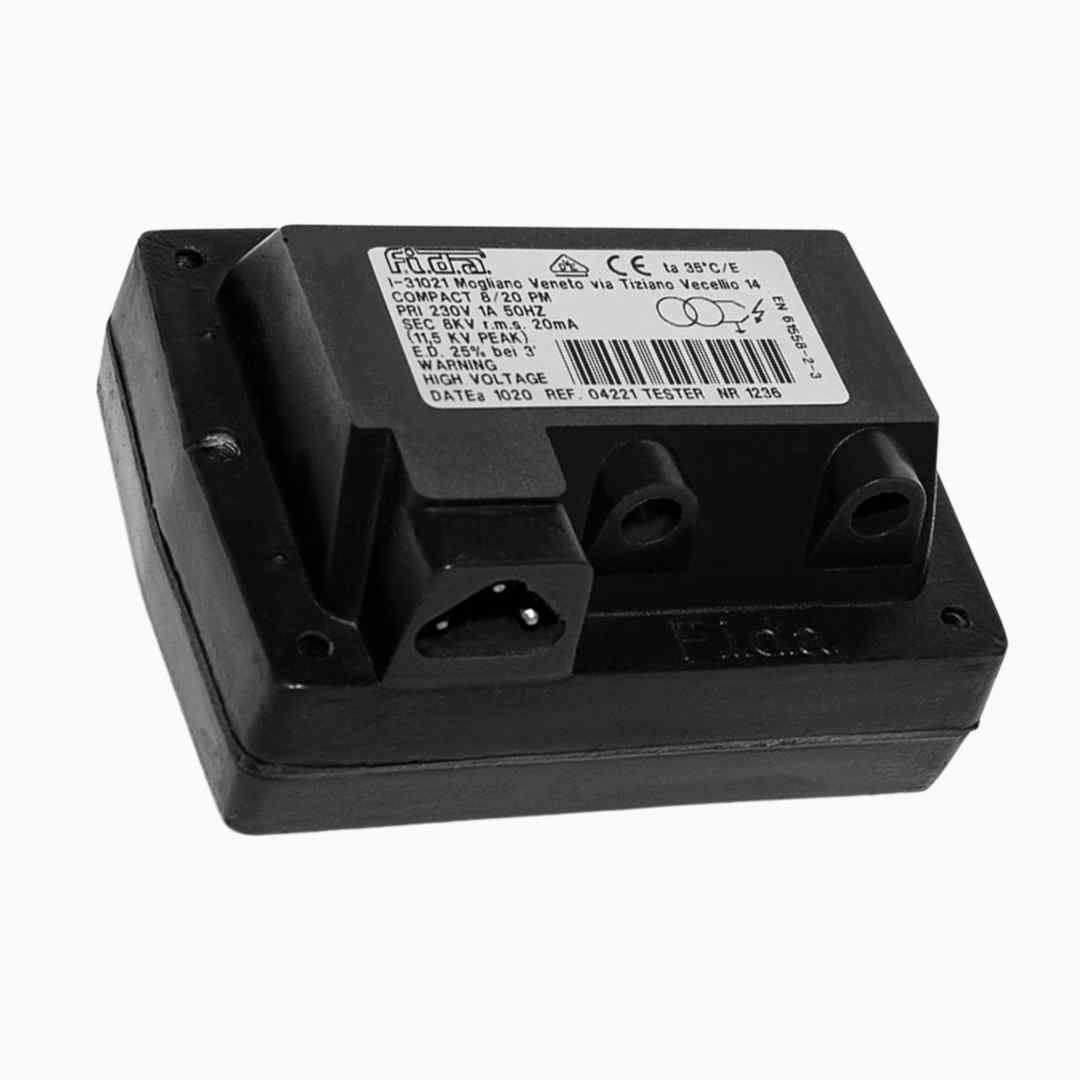

The FIDA Compact Medio Series Ignition Transformers are engineered to deliver efficient and reliable ignition for industrial combustion systems. Designed with compact dimensions and robust construction, these transformers provide stable high-voltage output for dependable flame ignition in gas burners, oil burners, hot air generators, boilers, and process heating equipment.

The Compact Medio Series is available in both Midpoint Ground Connected (CM) and One Pole Ground Connected (PM) configurations, offering flexibility for various burner ignition systems.

Operating on 230V or 400V power supplies depending on the model, the series delivers ignition outputs ranging from 4 kV to 8 kV with currents from 10 mA to 30 mA. Models are available for continuous operation as well as intermittent-duty applications.

Designed to comply with EN 61558-2-3 standards and RoHS requirements, the Compact Medio Series ensures long service life, safe operation, and reliable ignition performance.

Key Features

• Compact ignition transformer for gas and oil burners

• Reliable high-voltage spark generation

• Available in midpoint ground and one-pole ground versions

• Output voltage up to 8 kV

• Output current up to 30 mA

• Continuous and intermittent-duty models available

• 230V and 400V supply options

• IP44 protection rating

• CE certified

• RoHS compliant

• Compact and durable construction

• Maintenance-free operation

Applications

• Industrial Gas Burners

• Industrial Oil Burners

• Commercial Burners

• Steam Boilers

• Hot Air Generators

• Industrial Furnaces

• Process Heating Systems

• Drying Equipment

• Thermal Oil Heaters

• Combustion Systems

• OEM Burner Manufacturing

• Burner Retrofit & Replacement Projects

Why Choose FIDA Compact Medio Ignition Transformers?

• Reliable burner ignition performance

• Multiple voltage and current options

• Suitable for gas and oil burner applications

• Compact design for easy installation

• Available in different grounding configurations

• Long operational life

• CE certified and RoHS compliant

• Trusted FIDA ignition technology

Technical Description

The FIDA Compact Medio Series converts standard mains voltage into high-voltage ignition energy required for burner ignition systems. Available in midpoint ground connected (CM) and one-pole ground connected (PM) versions, the series provides flexible installation options for industrial combustion equipment.

Output voltages range from 2 × 4 kV to 2 × 6 kV for CM models and from 1 × 5 kV to 1 × 8 kV for PM models. Output currents range from 10 mA to 30 mA depending on the model.

The transformers provide reliable spark generation for burner ignition while maintaining compact dimensions and robust industrial performance.

Technical Specifications

Available Models – CM (Midpoint Ground Connected)

Available Models – PM (One Pole Ground Connected)

Configuration Types

CM – Midpoint Ground Connected

Provides a grounded midpoint between the secondary windings and is suitable for burner systems requiring center-ground ignition circuits.

PM – One Pole Ground Connected

Provides a single grounded pole output configuration suitable for burner systems requiring a grounded ignition electrode arrangement.
