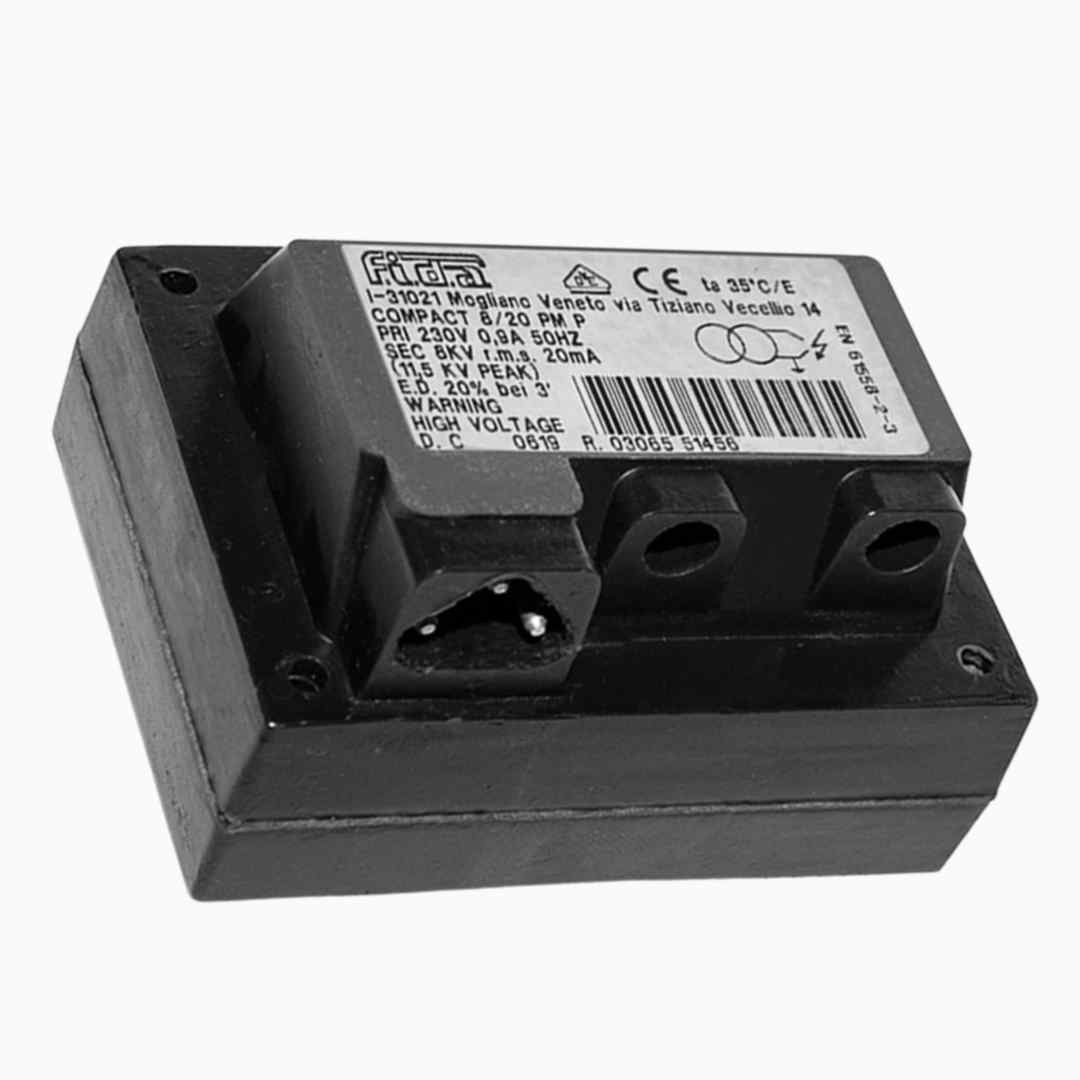

The FIDA Compact Piccolo Series Ignition Transformers are engineered to provide safe, reliable, and efficient ignition for industrial and commercial gas burners. Their compact design allows easy installation in burner assemblies where space is limited while delivering the high-voltage output required for dependable flame ignition.
Operating on a standard 230V, 50Hz power supply, the Compact Piccolo Series is available in midpoint ground connected (CM) and one-pole ground connected (PM) configurations. The transformers generate ignition voltages up to 24 kV and 8 kV respectively, ensuring strong ignition performance for various burner applications.
Designed to comply with EN 61558-2-3 standards and RoHS requirements, the Compact Piccolo Series offers reliable operation, long service life, and maintenance-free performance.
Key Features
Compact ignition transformer for gas burners
Reliable high-voltage spark generation
Available in midpoint ground and one-pole ground versions
230V / 50Hz operation
Compact and lightweight design
Low power consumption
RoHS compliant
CE certified
IP44 protection rating
Durable construction
Long service life
Maintenance-free operation
Applications
Industrial Gas Burners
Commercial Gas Burners
Steam Boilers
Hot Air Generators
Industrial Furnaces
Process Heating Systems
Drying Equipment
Combustion Systems
OEM Burner Manufacturing
Burner Retrofit & Replacement Projects
Why Choose FIDA Compact Piccolo Ignition Transformers?
Reliable burner ignition performance
Compact size for easy installation
High-voltage output for strong spark generation
Available in different grounding configurations
CE and RoHS certified
Suitable for industrial and commercial applications
Trusted FIDA ignition technology
Long-lasting and maintenance-free operation
Technical Description
The FIDA Compact Piccolo Series converts standard 230V AC mains voltage into a high-voltage ignition output required for gas burner ignition systems.
The series includes two configurations: midpoint ground connected (CM) and one-pole ground connected (PM). Both models operate on a 230V, 50Hz power supply with a current consumption of 0.9A and output current of 20mA.
The CM model provides a high-voltage output of 2 × 4,000V, while the PM version delivers 1 × 8,000V output. Designed with IP44 protection when used with FIDA-approved cables, these transformers provide reliable performance in demanding combustion environments.
Technical Specifications
Specification | Details |
|---|---|
Brand | FIDA |
Series | Compact Piccolo |
Product Type | Ignition Transformer |
Input Voltage | 230V AC |
Frequency | 50Hz |
Input Current | 0.9 A |
Output Voltage | 2 × 4 kV / 1 × 8 kV |
Output Current | 20 mA |
Duty Cycle | 20% (3 Minutes) |
Protection Class | IP44 |
Compliance | CE, EN 61558-2-3, RoHS |
Application | Gas Burners |
Available Models
Model | Input Voltage | Output Voltage | Output Current | Configuration | Duty Cycle |
|---|---|---|---|---|---|
8/20 CM | 230V, 50Hz | 2 × 4 kV | 20 mA | Midpoint Ground Connected | 20% (3 min) |
8/20 PM | 230V, 50Hz | 1 × 8 kV | 20 mA | One Pole Ground Connected | 20% (3 min) |
Configuration Types
CM – Midpoint Ground Connected
Provides a grounded midpoint connection between secondary windings and delivers a 2 × 4 kV ignition output suitable for burner systems requiring center-ground ignition circuits.
PM – One Pole Ground Connected
Provides a single-pole grounded high-voltage output of 1 × 8 kV, suitable for specific burner ignition applications requiring higher single-output voltage.
