The Monarch F-94 Water Nozzle is a precision-engineered industrial spray nozzle designed to provide effective liquid distribution and consistent atomization performance in demanding operating environments.

The nozzle features a specially designed spiral-milled core or disc that creates a high-velocity spinning action within the nozzle body. This unique internal design generates a solid cone spray pattern with medium atomization, ensuring excellent coverage and efficient liquid application.

Available in multiple spray angles ranging from 15° to 80°, the F-94 can be adapted to a variety of process requirements. The nozzle is particularly successful in applications such as dust suppression systems, industrial washers, coal washing plants, and carbon black production facilities.

Manufactured as standard in 416 stainless steel and available in 304 and 316 stainless steel, the F-94 offers excellent durability, corrosion resistance, and long service life.

Key Features

Solid cone industrial spray nozzle

Spiral-milled core for uniform liquid distribution

Medium atomization performance

Wide range of spray angles available

High-capacity water nozzle design

Excellent coverage and spray consistency

Stainless steel construction

Suitable for demanding industrial environments

Reliable long-term operation

Applications

Carbon black production plants

Dust suppression systems

Coal washing facilities

Industrial washing systems

Process cooling systems

Chemical processing plants

Industrial cleaning equipment

Water treatment systems

General industrial spraying applications

Why Choose This Nozzle

Provides uniform solid cone spray coverage

Designed for heavy-duty industrial applications

Wide range of capacities and spray angles available

Durable stainless steel construction

Excellent atomization and liquid distribution

Trusted Monarch spray nozzle technology

Technical Description

The Monarch F-94 nozzle uses a unique spirally milled internal core that imparts rotational energy to the liquid before discharge. This spinning action produces a solid cone spray pattern with medium droplet size and highly uniform liquid distribution.

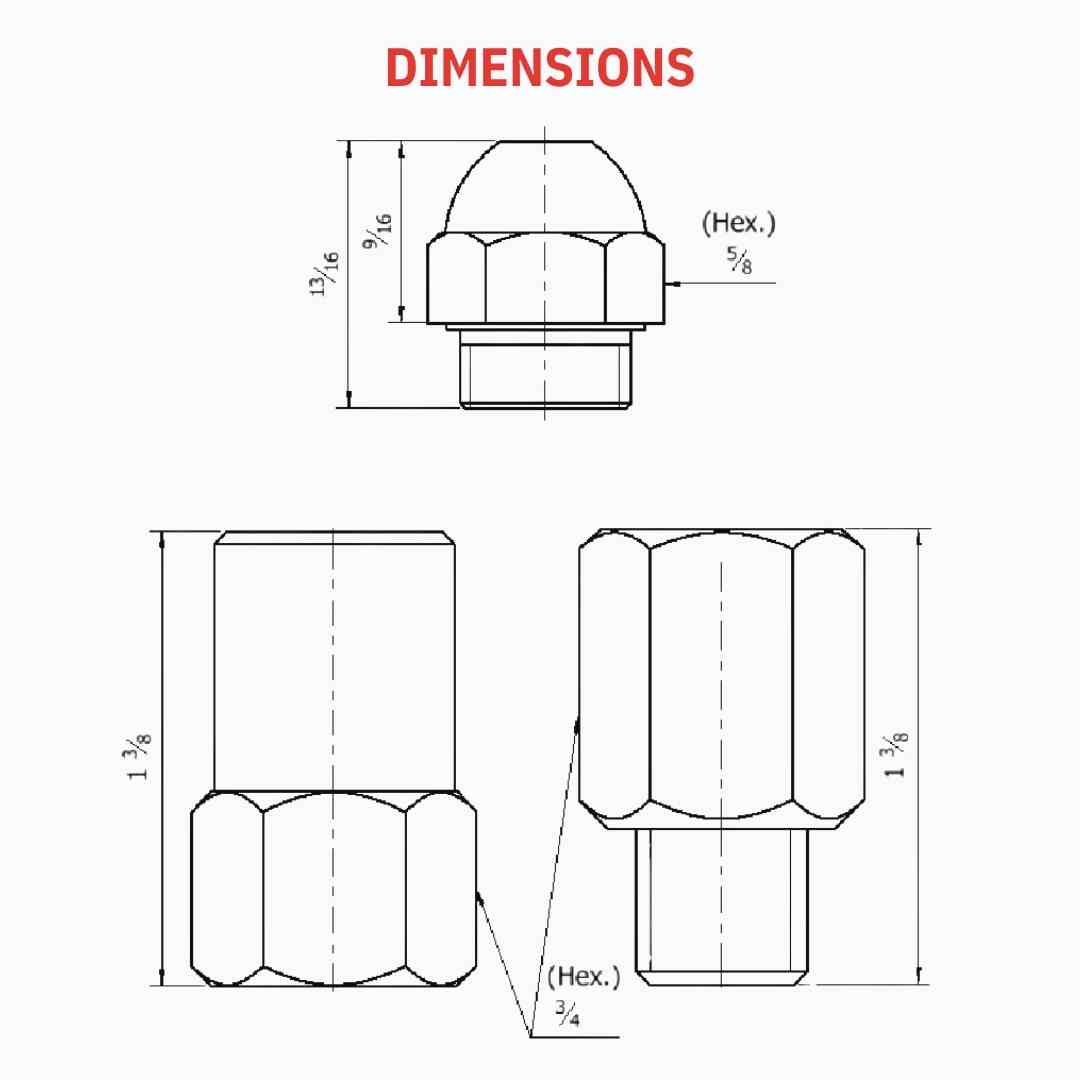

The nozzle tip incorporates a straight machine thread design that can be used with male or female adapters fitted with NPT connections, providing installation flexibility across different systems.

Its robust design and broad operating range make it ideal for industrial applications requiring reliable spray performance and efficient liquid coverage.

Technical Specifications
