The Monarch H-261 Water Nozzle is a direct pressure atomizing nozzle designed to produce a very fine hollow cone spray pattern similar to the Monarch F-80 series. Unlike the F-80 nozzle, the H-261 incorporates a male NPT connection, allowing direct installation into standard pipe fittings without additional adaptors.

The nozzle operates solely through liquid pressure and does not require compressed air or steam for atomization. This simplifies installation and reduces operating costs while maintaining excellent spray performance.

The H-261-CJ version includes a specially designed center jet through the swirl chamber, producing a solid cone spray pattern with slightly coarser atomization. This configuration has proven highly effective in commercial dishwashing and industrial cleaning applications where greater spray impact is required.

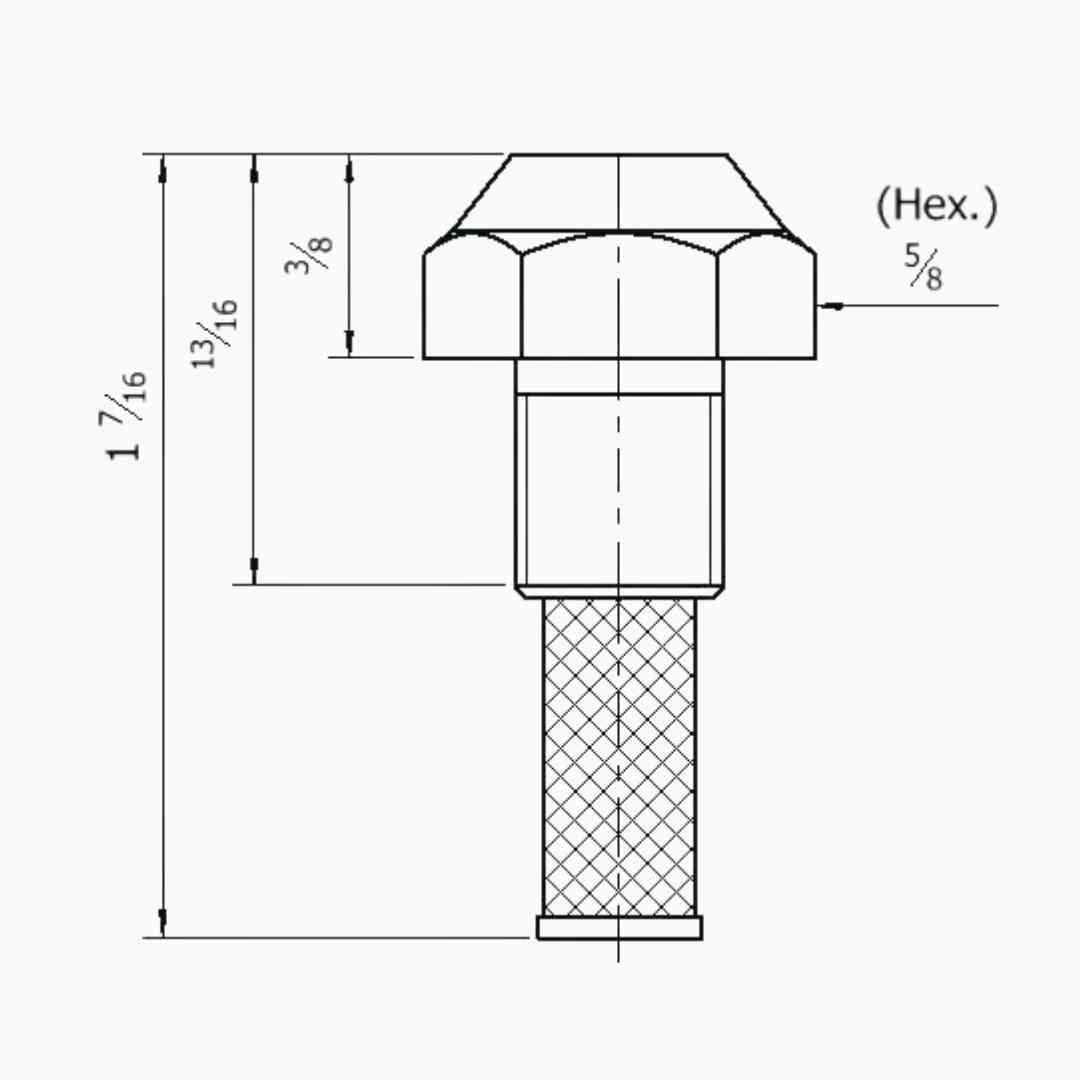

Constructed entirely from brass and equipped with a 120-mesh Monel strainer, both models offer reliable performance and long service life in demanding industrial environments.

Key Features

• Direct pressure-operated spray nozzle

• No compressed air or steam required

• Fine hollow cone spray pattern (H-261)

• Solid cone spray pattern with center jet (H-261-CJ)

• Direct threaded installation without adaptors

• 120-mesh Monel strainer protection

• All-brass construction

• Multiple spray angle options available

• Reliable industrial performance

Applications

• Snowmaking systems

• Industrial spray racks

• Commercial dishwashers

• Industrial cleaning systems

• Water spraying applications

• Cooling systems

• Humidification systems

• General industrial processing

Why Choose This Nozzle

• Produces fine atomization without air assistance

• Simple direct installation design

• Available in hollow cone and solid cone configurations

• Reliable operation with minimal maintenance

• Durable brass construction

• Trusted Monarch spray nozzle technology

Technical Description

The Monarch H-261 nozzle utilizes a precision swirl chamber to create a fine hollow cone spray pattern through direct liquid pressure operation. The design produces excellent atomization and spray distribution without requiring auxiliary atomizing media.

The H-261-CJ incorporates an additional center jet passage through the swirler assembly. This design modifies the spray pattern into a solid cone configuration and generates slightly larger droplets, making it suitable for cleaning and washing applications where greater liquid impact is beneficial.

Both nozzle versions operate efficiently at pressures of 40 PSI and above, with atomization quality improving as pressure increases.

Technical Specifications
