The Monarch H-530 Nonclog Water Nozzle is a simple yet highly effective industrial spray nozzle based on a proven non-clogging design principle. The nozzle consists of only two main components: a body containing the inlet connection and orifice, and a cap that forms the bottom of the swirl chamber.

This streamlined construction minimizes blockage risks and provides dependable performance even in demanding industrial environments where water quality may vary.

The H-530 produces a uniform solid cone spray pattern, ensuring even liquid distribution across the entire spray coverage area. Its design is particularly suitable for installations requiring a right-angle connection, making it a popular choice for industrial process systems.

Manufactured from durable brass as standard, the nozzle can also be supplied in various machinable materials to meet specific application requirements.

Key Features

Nonclog industrial spray nozzle design

Uniform solid cone spray distribution

Simple two-piece construction

Reliable operation with minimal maintenance

Suitable for right-angle piping installations

Durable brass construction

Even liquid coverage across the spray area

Easy installation and servicing

Designed for industrial process applications

Applications

Gas scrubbing systems

Industrial rinsing systems

Industrial washing equipment

Quenching applications

Dust suppression systems

Water treatment systems

Chemical processing plants

General industrial spraying applications

Why Choose This Nozzle

Nonclog design reduces maintenance requirements

Provides uniform solid cone spray coverage

Simple and reliable construction

Ideal for industrial process applications

Suitable for demanding operating environments

Trusted Monarch spray nozzle technology

Technical Description

The Monarch H-530 nozzle utilizes a simple swirl chamber design that generates a uniformly distributed solid cone spray pattern. Liquid enters through the nozzle body and passes through the orifice into the swirl chamber formed by the removable cap.

This design provides effective atomization and even spray distribution while minimizing internal components that could contribute to clogging. The result is dependable spray performance and reduced maintenance requirements.

The nozzle is especially useful in applications requiring a right-angle connection and consistent liquid coverage over a defined area.

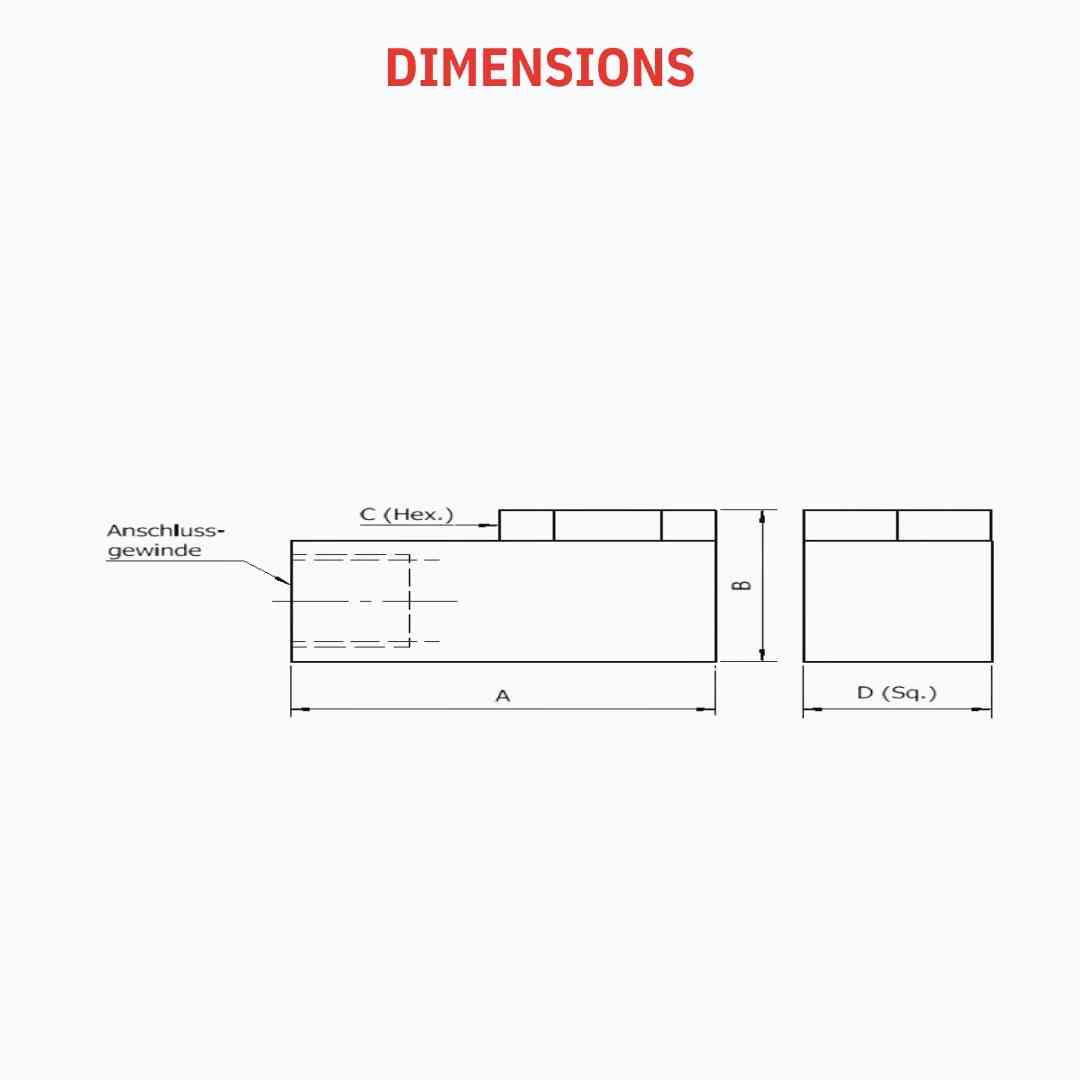

Technical Specifications
