The Monarch H-545 Water Nozzle is a versatile industrial spray nozzle engineered to provide effective liquid distribution across a wide target area. Featuring a precision-machined U-notch flow channel and rectangular discharge orifice, the nozzle generates a wide flat spray pattern with uniform liquid coverage.

Unlike narrow cutting spray nozzles, the H-545 produces a broader "fat" spray sheet that is particularly effective for rinsing, washing, and cleaning operations where complete surface coverage is required.

The nozzle is widely used in automatic car wash systems, industrial parts washers, rinsing equipment, conveyor cleaning systems, and general industrial processing applications.

Available in multiple capacities, spray angles, and pipe connection sizes, the H-545 can be adapted to a wide range of industrial spraying requirements.

Key Features

Flat fan spray nozzle design

Wide spray sheet for maximum coverage

Precision U-notch milling and rectangular orifice

Excellent rinsing and washing performance

Uniform liquid distribution

Multiple spray angle options available

Available in various flow capacities

Durable brass and stainless steel construction

Reliable industrial operation

Applications

Automatic car wash systems

Industrial parts washers

Surface rinsing systems

Industrial cleaning equipment

Conveyor cleaning systems

Process spraying applications

Water distribution systems

General industrial washing operations

Why Choose This Nozzle

Provides wide and uniform spray coverage

Ideal for washing and rinsing applications

Available in multiple capacities and spray angles

Simple and reliable nozzle design

Durable construction for long service life

Trusted Monarch spray nozzle technology

Technical Description

The Monarch H-545 nozzle utilizes a specially engineered U-notch flow channel combined with a rectangular discharge orifice to create a broad flat spray pattern.

This design produces a uniform liquid sheet that effectively covers large surfaces while maintaining sufficient spray impact for cleaning and rinsing operations. The nozzle is available with spray angles of 50°, 60°, 70°, and 80° at 40 PSI, allowing users to select the most suitable coverage pattern for their application.

The H-545 is manufactured from brass and 303 stainless steel as standard, ensuring durability and reliable performance in industrial environments.

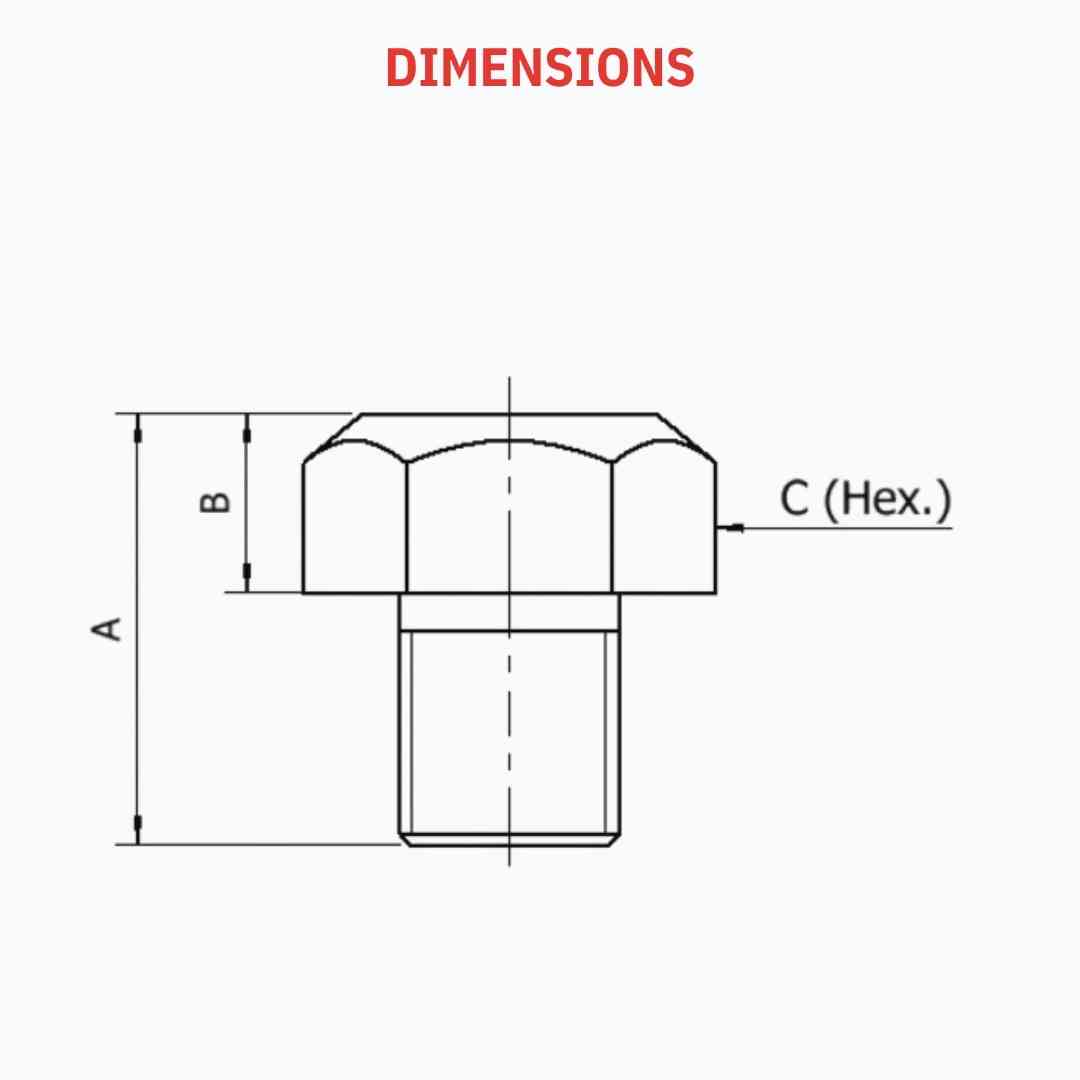

Technical Specifications
