The Monarch H-601 Air Operated Nozzle is a highly efficient atomizing nozzle engineered for applications requiring ultra-fine liquid atomization. Unlike conventional pressure nozzles, the H-601 utilizes compressed air or steam to create suction at the liquid inlet, automatically drawing liquid into the nozzle without the need for a liquid pump.

This aspirating design significantly reduces system complexity and operating costs where compressed air is already available. The nozzle produces a fine fog-like spray pattern that provides excellent coverage and evaporation characteristics for industrial processes.

A key advantage of the H-601 is its ability to operate at very low flow rates without clogging. The design contains no small internal passages, making it highly reliable when handling liquids that may contain small particles or contaminants.

Available in brass and stainless steel construction, the H-601 is suitable for a wide range of industrial atomization and process spraying applications.

Key Features

Air or steam operated atomizing nozzle

Produces ultra-fine fog-like spray

No liquid pressure required

Self-aspirating liquid suction design

No liquid pump required in many installations

Excellent performance at low flow rates

Clog-resistant construction

Simple and reliable operation

Suitable for industrial process applications

Applications

Humidification systems

Industrial cooling systems

Dust suppression systems

Evaporative cooling applications

Chemical processing plants

Spray coating systems

Odor control systems

General industrial atomization

Why Choose This Nozzle

Produces extremely fine atomization

Operates without liquid pumping equipment

Reduces installation and operating costs

Reliable clog-resistant design

Suitable for low flow rate applications

Trusted Monarch spray nozzle technology

Technical Description

The Monarch H-601 nozzle utilizes an aspirating atomization principle. Compressed air or steam enters the nozzle and creates a low-pressure zone at the liquid inlet. This suction effect draws liquid directly into the nozzle where it is mixed with the atomizing medium.

The resulting mixture is discharged as a fine fog-like spray with excellent atomization characteristics. Because the design does not rely on high liquid pressure or small metering passages, the nozzle is capable of producing very low flow rates without clogging issues.

The nozzle can operate with either compressed air or steam, providing flexibility across a variety of industrial applications.

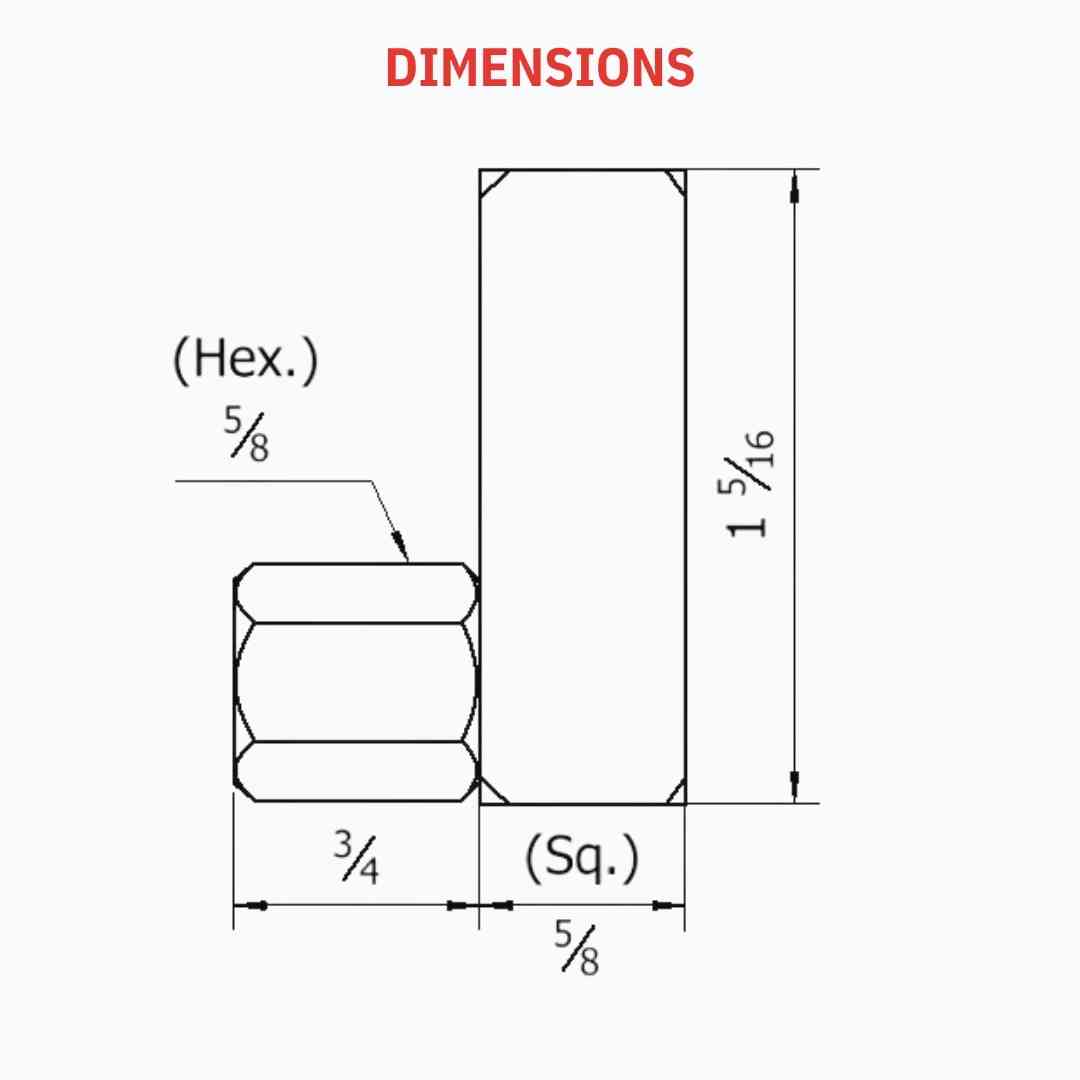

Technical Specifications
