The Monarch Midget Series Water Nozzles are specially developed for applications requiring a small, lightweight, and economical spray nozzle without sacrificing atomization performance.

The M Series produces an extremely fine mist with an 80° spray angle, making it ideal for applications where low water consumption and fog-like atomization are required. The MW Series generates a slightly coarser spray with wider coverage angles of 90°, 120°, and 160°, making it suitable for applications requiring maximum area coverage in confined spaces.

Both nozzle series are supplied with an 80-mesh Monel strainer for easy cleaning and protection against contamination. Their compact design allows installation in areas where mounting space is limited.

The Midget Series is widely used in greenhouses, livestock cooling systems, humidification systems, industrial cooling processes, and general misting applications.

Key Features

Compact atomizing water nozzle design

Fine mist atomization with low water consumption

Available in M and MW spray configurations

80° spray angle for M Series

90°, 120°, and 160° spray angles for MW Series

Built-in 80-mesh Monel strainer

Ideal for confined installation spaces

Reliable industrial and agricultural performance

Easy maintenance and cleaning

Applications

Greenhouse humidification systems

Plant fogging systems

Livestock cooling systems

Poultry cooling systems

Industrial humidification

Evaporative cooling systems

Misting and fogging installations

Agricultural spraying applications

Industrial process cooling

Why Choose This Nozzle

Produces fine atomization with minimal water usage

Compact design for restricted installation spaces

Available in multiple spray angle options

Suitable for industrial and agricultural applications

Integrated strainer for reliable operation

Trusted Monarch spray nozzle technology

Technical Description

The Monarch Midget Series utilizes precision atomization technology to create a fine spray pattern while maintaining low water consumption. The M Series produces a very fine fog-like mist suitable for humidification and cooling applications.

The MW Series offers wider spray angles and slightly larger droplet sizes, providing enhanced area coverage where broader distribution is required. Both designs incorporate an 80-mesh Monel strainer to protect the nozzle and simplify maintenance.

Their compact construction and efficient atomization make them particularly suitable for greenhouse, livestock, and industrial cooling systems.

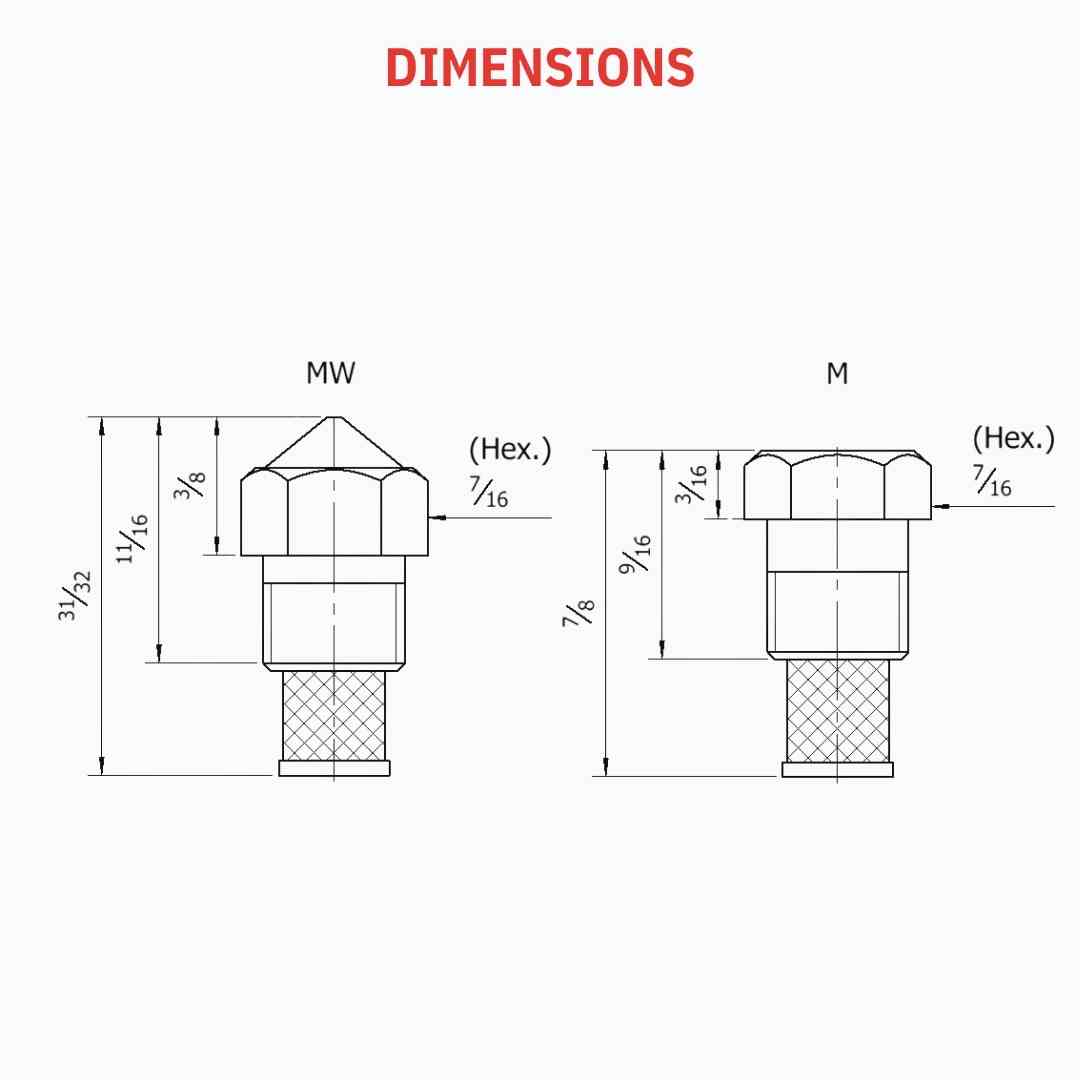

Technical Specifications
